3D Structures - Sequence Dependent Analysis
All 3D models for target: T0160

Group name: 417


Total number of ALL models submitted for target T0160 : 403
Number of models submitted by group 417 : 3

BLUE - Model - T0160TS417_1
CYAN - Other models submitted by group: 417
BROWN - Models submitted by other groups

GDT analysis: largest set of CA atoms (percent of the modeled structure) that can fit under
DISTANCE cutoff: 0.5A, 1.0A, 1.5A, ... , 10.0A

Largest set of residues from the Model T0160TS417_1 that can fit under DISTANCE cutoff :
        52   percent of residues   ( 65 residues )   fits under   1A   with local RMSD   0.68
        76   percent of residues   ( 95 residues )   fits under   2A   with local RMSD   1.01
        87   percent of residues   ( 109 residues )   fits under   4A   with local RMSD   1.59
        95   percent of residues   ( 119 residues )   fits under   6A   with local RMSD   2.18
Percent of the structure predicted: 100.00   ( CA atoms:   Model 125 , Target 125 )

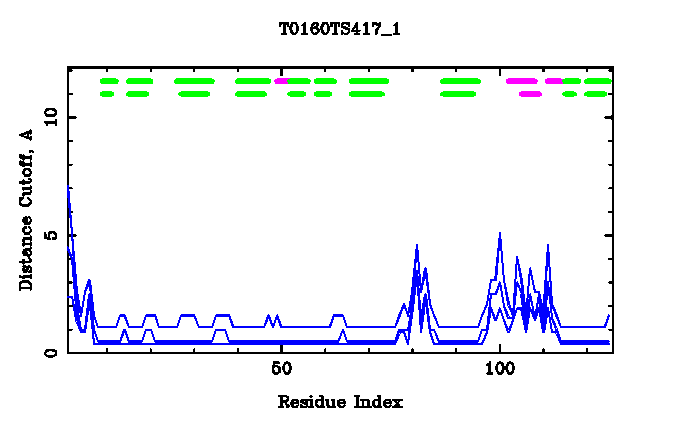

Detailed GDT analysis of the Model T0160TS417_1

Each residue in the prediction is assigned to the largest set of residues containing that residue and deviating from the target by no more than a specified CA distance cutoff.
For a given residue the distance cutoff under which the set of 5, 10 and 50 percent of the modeled structure can be fitted is used for graphical presentation (three blue lines).

Target (top row): helices - PURPLE , strands - GREEN
Model (second row): helices - PURPLE , strands - GREEN
Target-Model GDT(5,10,50): BLUE
Bad model or residues not predicted: BLACK

TXT results, LCS results (see GDT and LCS description)

Adam Zemla, 10/21/2002, adamz@llnl.gov
